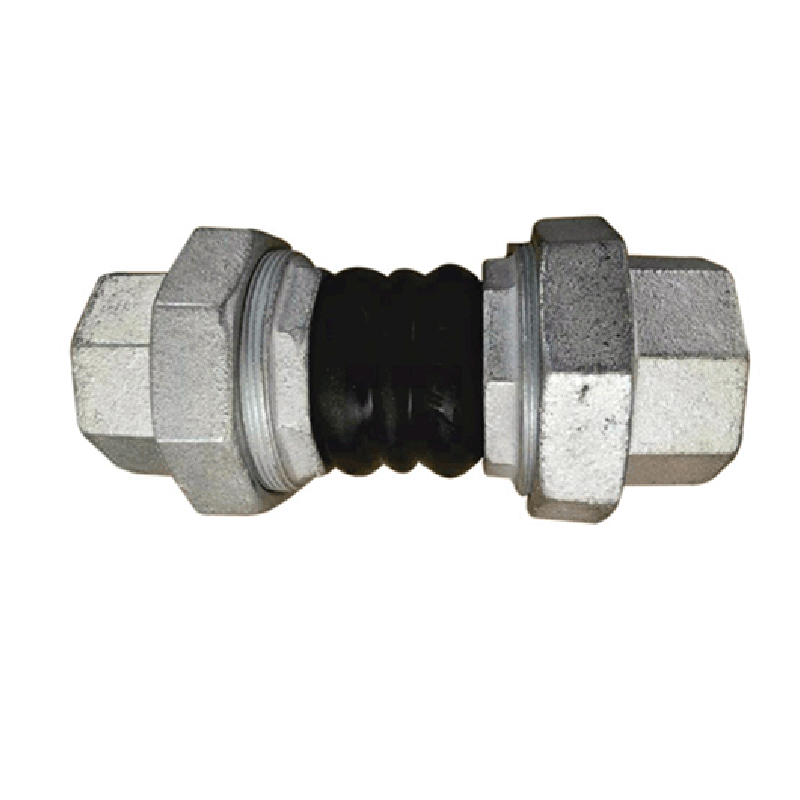

Double Sphere Union Type Rubber Joint

Double Sphere Union Type Rubber Joint

1. Parts: Materials
2. Main: Body Polarized rubber
3. Lining: Nylon cord fabric
4. Union: Malleable iron or steel





PDF Download

Details

Tags

Double Sphere Union Type Rubber Joint
Double Sphere Union Type Rubber Joint

DimensionsDouble Sphere Union Type Rubber Joint



Size

L

Axial displacement

Lateral
displacement

(mm)

(in)

Stretch(mm)

Compression

15

1/2"

200

5-6

22

22

20

3/4"

200

5-6

22

22

25

1"

200

5-6

22

22

32

1 1/4"

200

5-6

22

22

40

1 1/2"

200

5-6

22

22

50

2"

200

5-6

22

22

65

2 1/2"

245

5-6

22

22

80

3"

245

5-6

22

22
